TR100 Industrial TPMS
An industrial-grade tire pressure and temperature monitoring system for port machinery, mining trucks and heavy-duty vehicles. Built to talk to the machine's own controller over CAN, RS485, Profinet, RS232 or Modbus — and to reach the cloud when you need it.
Four parts, one self-developed chain
| Component | Function | Location |
|---|---|---|
| Sensor | Reads pressure and temperature, transmits over 433.92 MHz | Valve stem / rim, inside or outside the tire |
| Receiver | Collects all sensors and outputs to the vehicle bus or a display | Electrical cabinet or cab |
| Repeater | Extends radio coverage past long chassis and metal structures | Mid-chassis or unobstructed points |
| Display | Shows every wheel's pressure and temperature in real time | Cab |
Four reasons fleets fit it
E
Economy
Correct inflation extends tire life by a reported 20–30 %, cuts fuel burn and avoids unplanned downtime.
F
Efficiency
Replaces manual walk-around checks with continuous automatic monitoring and visual alarms.
I
Intelligence
Multi-bus output plus an optional 4G gateway for fleet dashboards, history and utilisation reporting.
Technical parameters
Receiver
| Sensors supported | up to 256 (A/C models) · 42 (D model) |
| Interfaces | CAN 2.0B · RS232 · RS485 · UART · (4G CAT.1 optional) |
| CAN baud rate | 250 kbps default, software-adjustable |
| Data period | 10 ms |
| Supply voltage | DC 10–30 V |
| Ingress protection | IP68 · sealed connector (B+ / GND / CANH / CANL) |
| RF range | ≥ 100 m open air · ≥ 8 m in-tire |
| Display (A model) | 7" colour LCD, Bar/PSI & °C/°F switchable, monitors vehicle battery voltage |
| Alarms | high/low pressure · high temperature · fast leak · sensor fault · low sensor battery |
Sensor (internal / external valve)
| Sensor types | Internal strap · internal built-in valve · external screw-on (8V1 / 12V1) · external with OTR extension valve · optional tee |
| Pressure range | 0–4.5 / 0–9 / 0–13 bar by application · display resolution ±0.1 bar |
| Accuracy | pressure ±7 kPa (433.92 MHz) · temperature ±3 °C |
| Working temperature | internal −40 ~ +125 °C · external −20 ~ +85 °C |
| RF | 433.92 MHz · TX ≤ 8 dBm · alarm report ≤ 5 s, normal report ≤ 5 min |
| Battery | internal ≥ 5–6 years (sealed) · external ≥ 2 years (CR1632, replaceable) |
| Chip & protection | Infineon sensor chip · IP68 · anti-corrosion, vibration-proof, automotive-grade |
| Optional repeater | extends RF range for long vehicles / RTG · automatic trailer swap · DC 10–30 V, IP68 |
Repeater
| Relay distance | ≥ 100 m |
| TX power | ≤ 20 dBm |
| Supply voltage | 9–35 V DC |
| Ingress protection | IP68 |
| Operating temperature | −20 °C ~ +85 °C |
Display & gateway
| Display | 7" 800 × 480, DC 9–35 V, IP65 |
| Gateway (optional) | 4G DTU / T-Box, cloud uplink |
| Cloud platform | fleet dashboard, alarms, history, open API |
| Configurator | handheld configurator (CAN) |
What the hardware looks like
Sensor variants, the radio receiver and repeater, and the 7" cab display. Threaded brass valve bodies are available for external fitment; strap and internal versions cover the other mounting cases.

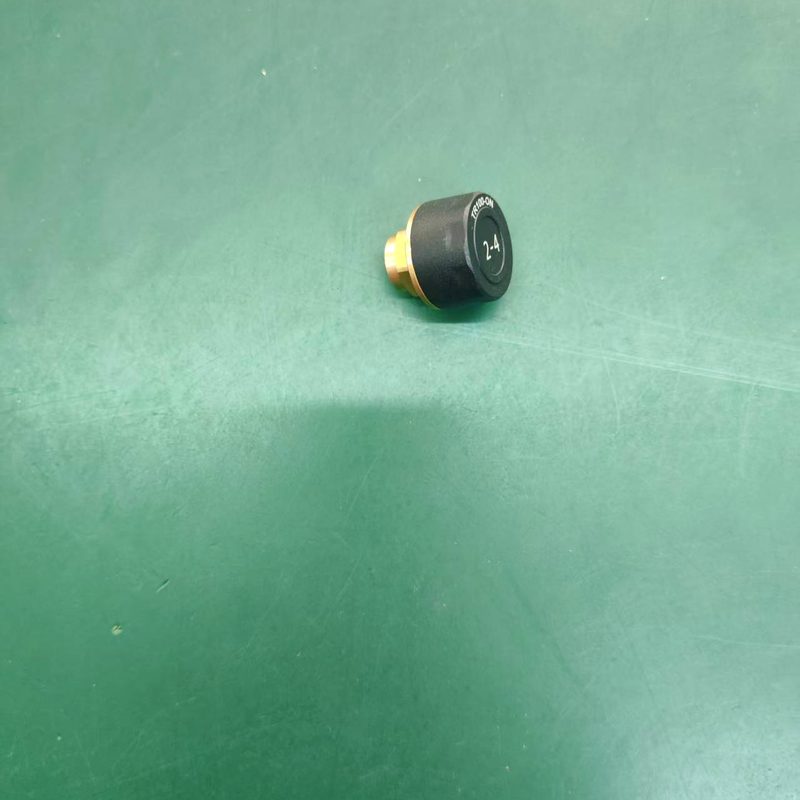

External valve sensor — brass thread, replaceable battery, IP68.

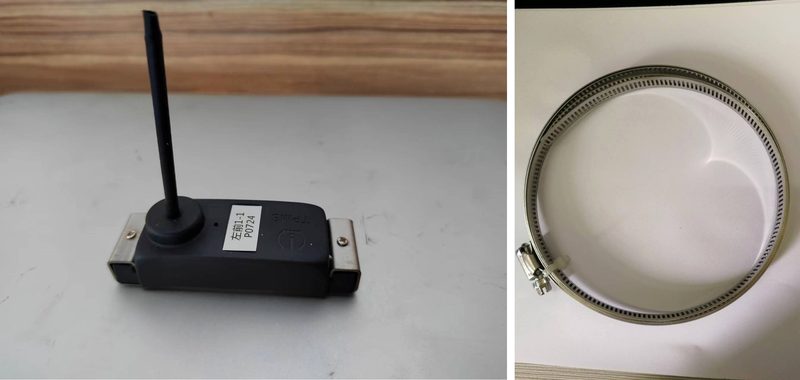

Strap-mounted sensor — for rims where no valve-stem fitment is possible.

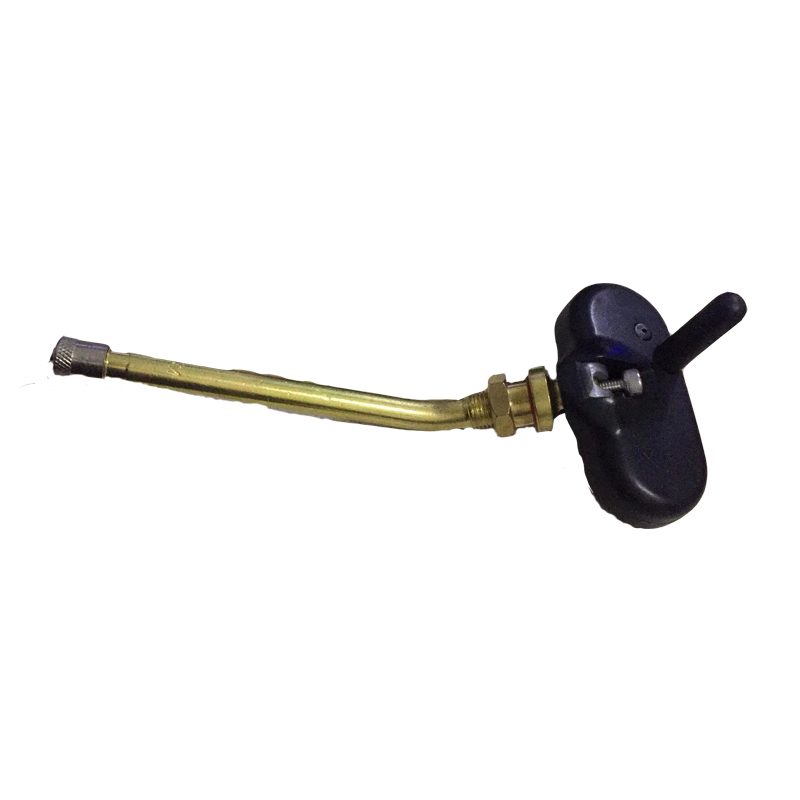

Internal valve sensor — sealed in-tire mounting, protected from impact.
Receiver — up to 256 sensors, multi-bus output, DC 10–30 V.
Repeater — ≥ 100 m relay, IP68, for long chassis.

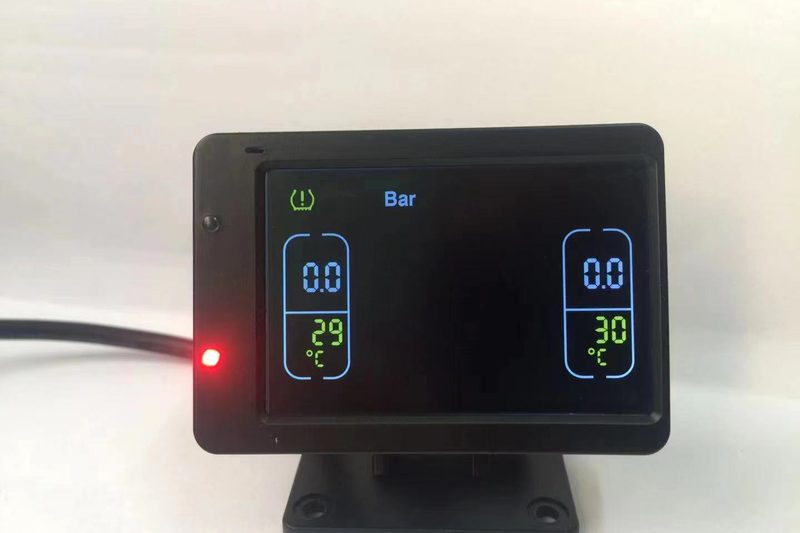

7" cab display — 800 × 480, DC 9–35 V, IP65.
Interface matrix
| Interface | Typical use |
|---|---|
| CAN | Vehicle control systems; CAN 2.0B, 250 kbps, 10 ms cycle |
| RS485 | Industrial fieldbus, long runs, multi-drop |
| Profinet | Siemens PLC integration over industrial Ethernet |
| RS232 | Legacy serial equipment retrofit |
| Modbus RTU | Industrial instruments and PLCs |
Applicable equipment
- Rubber-tyred gantry cranes (RTG), 8 / 16 wheel
- Reach stackers and container stackers
- Mining dump trucks, wide-body trucks, articulated haulers, scrapers
- Mobile cranes, concrete mixers, trailers
- Multi-axle heavy transport — beam carriers up to 224 wheels
- Automated guided vehicles and aircraft tractors
- City buses and commercial vehicle fleets
Note on photos

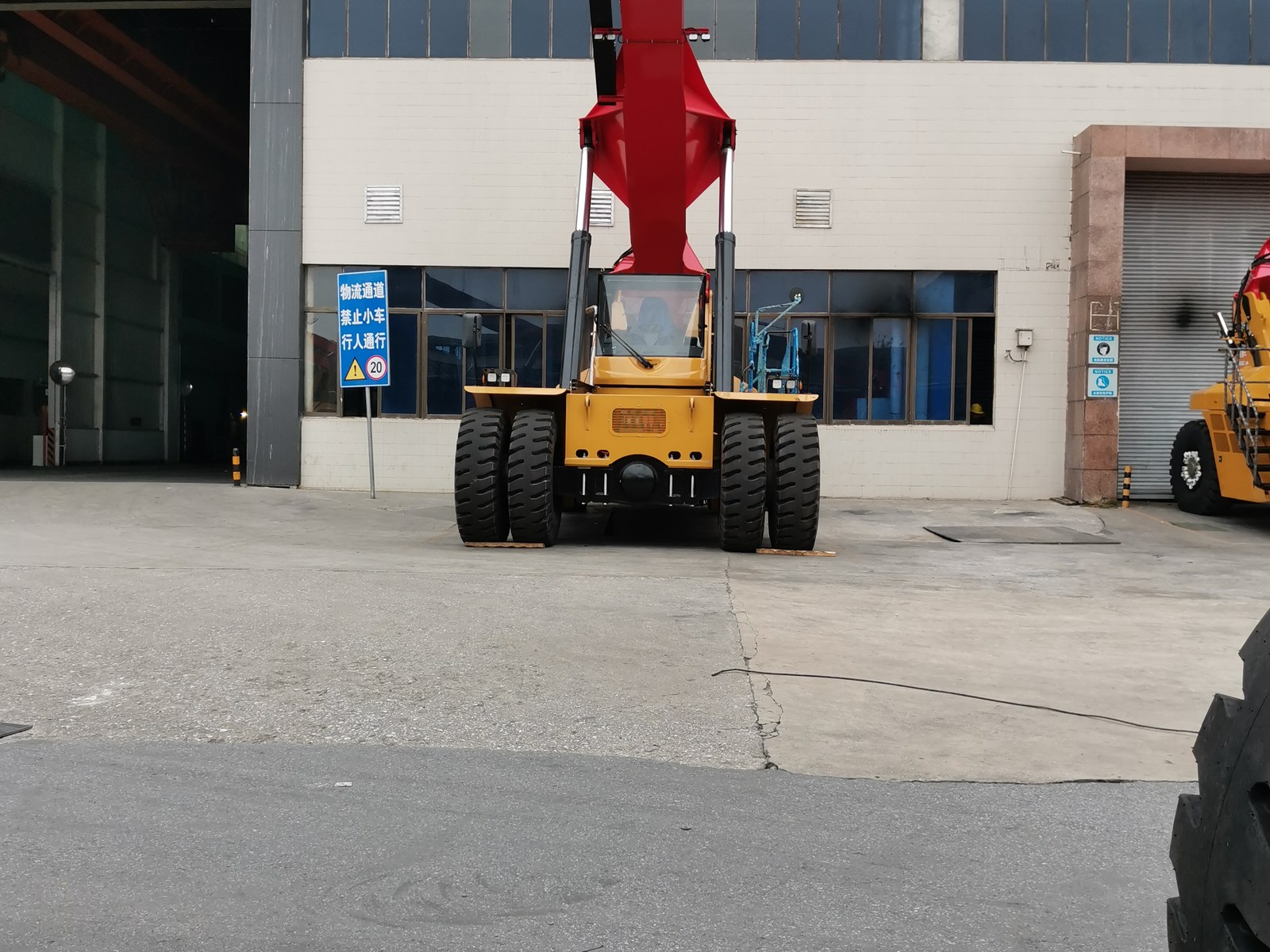

Field photos on this site show systems delivered between 2018 and 2023, i.e. the previous hardware generation. They document real deployments and installation practice; current-generation housings and a new 7" TFT touch display are in development.
Configuration examples
| Application | Receiver | Repeater | Sensors |
|---|---|---|---|
| 8-wheel RTG | 1 | 1 | 8 |
| 16-wheel RTG | 1 | 3 | 16 |
| Reach stacker / container stacker | 1 | 1 | per wheel count |
| 160-wheel beam carrier | 2 (incl. two 7" displays) | 12 | 160 |
| Multi-axle heavy transport (max) | 2 | 12+ | up to 256 |
24 V / 12 V vehicle systems supported (DC 10–30 V input). Tell us the wheel count and controller type, and we will reply with a wiring plan.
Product forms — TS-100IB, TS-100EV-8, TS-100EV-12

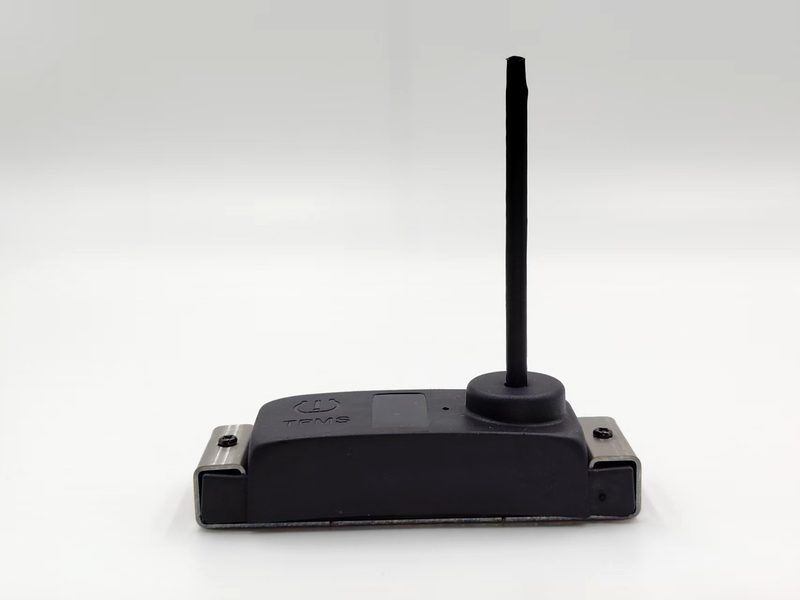

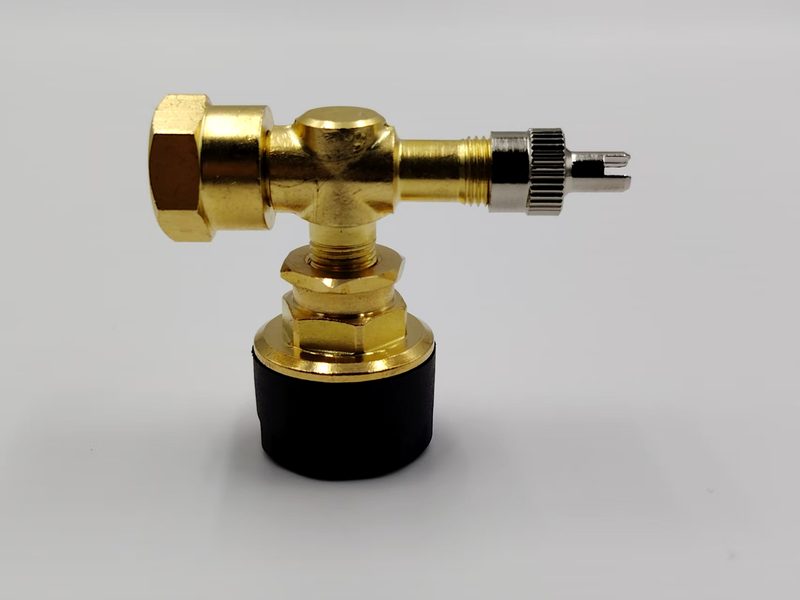

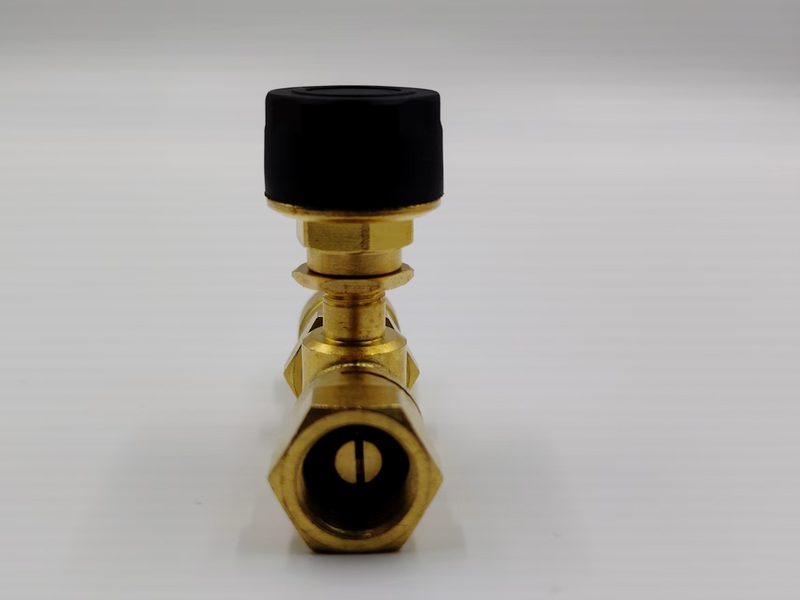

External sensors with brass tees (both connection variants), and the strap-mounted sensor for rims that cannot take a valve-stem fitment. Photographed from current production stock.
Who is this product for
Designed for
- Heavy equipment OEMs building TPMS into new machines
- Mining and port fleet operators retrofitting existing equipment
- System integrators connecting tire data to a PLC, VCU or fleet platform
- TPMS distributors running private-label programmes
Typical projects
- Front-fit TPMS on a new machine model, with your protocol and connector
- Retrofit of an existing fleet with CAN output into the machine controller
- Multi-axle transport where one receiver cannot reach every wheel
- Fleet-level monitoring with 4G uplink to a dashboard
What we need to quote
- Wheel count and axle layout
- Operating voltage of the machine
- Which controller or system receives the data
- Target protocol (CAN / J1939 / RS485 / RS232 / Modbus / PROFINET)
- Whether a cab display is required
Why choose GZVIA
-
01
Up to 256 tire positions per receiver, 224 wheels proven on one machine
-
02
CAN 2.0B, J1939, RS485, RS232, Modbus RTU, PROFINET and open REST API
-
03
In-house hardware, firmware and cloud — no third-party dependency
-
04
IP68, 433.92 MHz licence-free, ±7 kPa pressure accuracy
-
05
OEM/ODM: protocol, enclosure, display UI and packaging to your specification
-
06
Field-proven on port machinery, mining trucks, buses and beam carriers
Frequently asked questions
How many TPMS sensors can the TR100 support?
Up to 256 tire positions per receiver. On long vehicles where the chassis blocks the radio path we add repeaters — a 160-wheel beam carrier uses 2 receivers and 12 repeaters.
Can the TR100 communicate over CAN bus?
Yes. The receiver outputs on CAN 2.0B at 250 kbps by default with a 10 ms data period, both software-configurable, and we supply the message map so your controller can decode it.
Does the TR100 support J1939?
Yes, with PGN/SPN mapping supplied. RS485, RS232, Modbus RTU, PROFINET and UART are also available, so the same hardware fits different receiving systems.
Can TPMS data be read by a PLC?
Yes — via Modbus RTU, RS485 or PROFINET depending on your environment. Register maps are documented so the PLC program does not need custom decoding.
Can TPMS data be sent to a cloud platform?
Yes. Adding a 4G Cat.1 / GPS DTU to the same receiver makes it a connected unit reporting to a fleet dashboard, with an open REST API so the data can also land in your own platform.
What is the communication range of the receiver?
433.92 MHz licence-free radio. Range depends on geometry rather than a single number — on a yard machine one receiver covers the vehicle, on a long chassis repeaters are placed along it.
What are the operating temperature and ingress rating?
Internal sensors −40 to +125 °C, external sensors −20 to +85 °C, IP68, accuracy ±7 kPa (433.92 MHz) on pressure and ±3 °C on temperature. Supply voltage DC 10–30 V.
Which sensor types are available?
Internal strap type, internal valve type, external screw-on (8V1 / 12V1), and external screw-on with OTR extended valve for large mining rims. An optional T-connector is available for some fitments.
Can the system be customised for an OEM project?
Yes — protocol, enclosure, display UI, cloud API, packaging and label language can all be adapted as part of an OEM/ODM programme. Certification is scoped per target market.
Request a TR100 configuration
Send the machine model, wheel count and target interface. Samples for evaluation are available on request.
