Products / BPU100

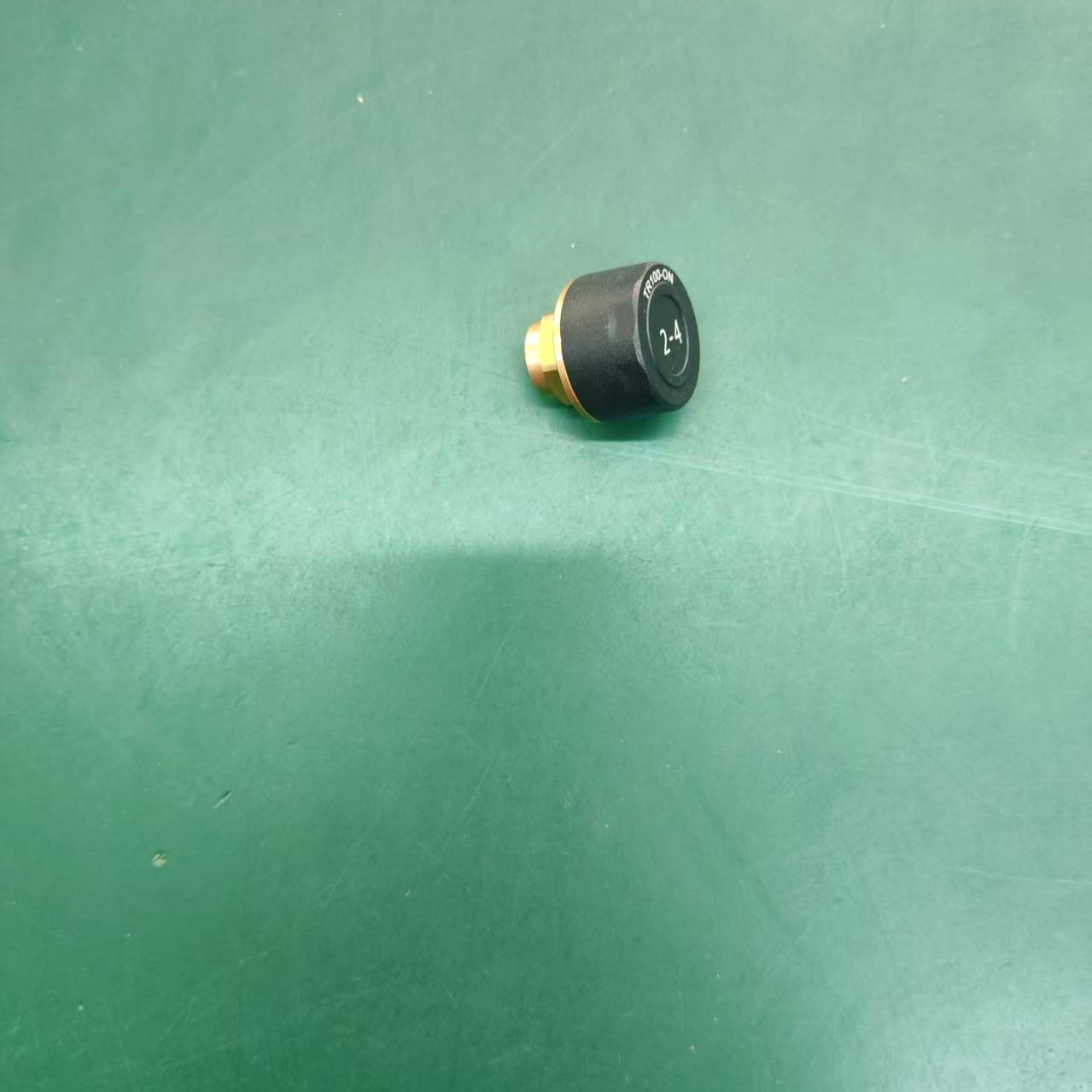

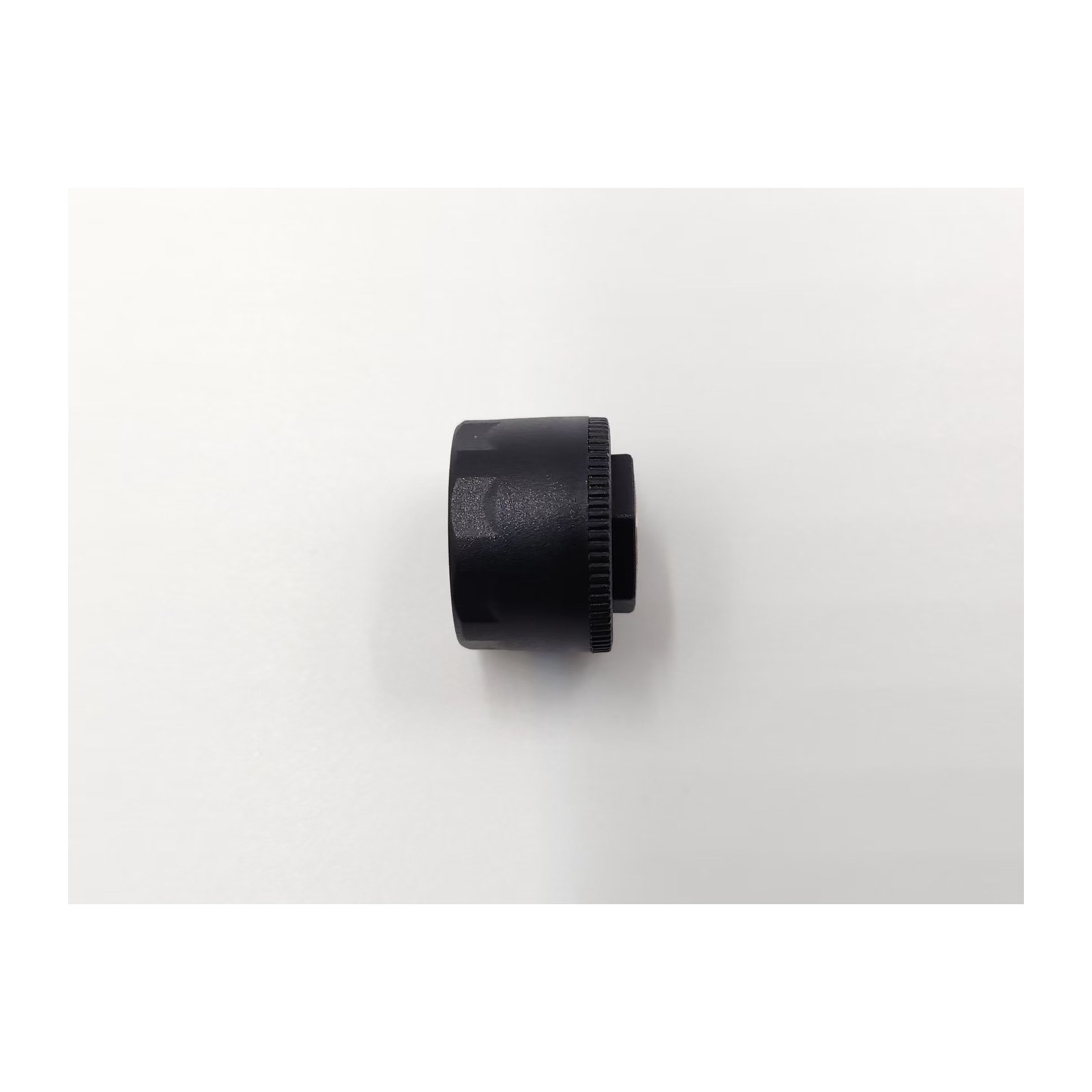

BPU100 Motorcycle BLE Tire Pressure Sensor
A Bluetooth Low Energy tire pressure and temperature sensor built for motorcycle, e-bike and light-vehicle dashboards. It pairs straight to the head unit — no extra receiver, no wiring.
Plug-and-play for volume programs
- Pairs over BLE 5.1 (1 Mbps PHY) — connects to existing CarPlay head units and motorcycle dashboards. No additional receiver.
- Replaceable CR1632 — the owner swaps the coin cell without tools and without re-pairing.
- Low power — designed for long maintenance-free service intervals.
- Wide temperature — −20 °C to +80 °C operating, suited to outdoor riding in all seasons.
- OEM/ODM flexible — protocol, housing, packaging and pairing flow can be customised for your dashboard ecosystem.
Specifications
| Model | BPU100 |
| Bluetooth | BLE 5.1 |
| TX power | 3 dBm |
| Frequency band | 2400 – 2483.5 MHz |
| Data rate | 1 Mbps |
| RX sensitivity | −95 dBm @ 1 Mbps |
| Power | CR1632 coin cell (replaceable) |
| Operating temperature | −20 °C ~ +80 °C |
| Storage temperature | −40 °C ~ +85 °C |
| Humidity | 5 – 95 % non-condensing |
| Monitors | pressure (bar) + temperature (°C) + alarms |
Variants
| Variant | Description |
|---|---|
| BPU100 Standard | universal motorcycle / e-bike fitment |
| BPU100 Built-in | sealed internal battery, non-replaceable |
| BPU100 Large-Vehicle | for larger tire sizes and higher volumes |
| BPU100 Wide-Temp | extended operating temperature range |
Who is this product for
Designed for
- Motorcycle accessory distributors and dealer networks
- Motorcycle, scooter and e-bike makers adding TPMS to a model
- Dashboard and head-unit makers who need a BLE sensor for their TPMS slot
- Private-label programmes for rider safety accessories
Typical projects
- Aftermarket line for ADV and touring riders — valve-mount sensor with the phone app
- Front-fit TPMS on a new scooter or e-bike model, paired to your head unit
- Dealer and workshop channel where nothing may be wired into the harness
- Private label: housing marking, packaging, manual and app branding
What we need to quote
- Target vehicles: model and wheel count
- Where the data goes — phone app, head unit or handlebar display
- Battery preference: replaceable CR1632 or sealed built-in
- Label and manual language for your market
- Order quantity, and whether you need private label
Why choose GZVIA
-
01
BLE 5.1 (1 Mbps PHY) — pairs straight to a phone, head unit or dashboard. No receiver, no wiring
-
02
10,000+ motorcycle units a month on repeat programmes, 30,000 sensors monthly capacity
-
03
CR1632 coin cell the owner can replace without re-pairing
-
04
Four variants: Standard, Built-in, Large-Vehicle and Wide-Temp
-
05
Private label on housing marking, packaging, manual and label; the Android app can carry your brand
-
06
−20 °C to +80 °C operating range, with pressure and temperature alarms
Frequently asked questions
What is the BPU100?
A Bluetooth Low Energy 5.1 (1 Mbps PHY) tire pressure and temperature sensor for motorcycles, scooters, light EVs and passenger cars. It pairs directly to a head unit, dashboard or phone app — no separate receiver and no wiring.
Does it need a receiver?
No. The BLE sensor talks straight to the receiving device, which is why it suits dashboard makers, head-unit makers and consumer products.
Is there an app?
Yes — our own Android app shows real-time pressure and temperature per wheel, alarm history and sensor pairing. It can be white-labelled for your brand, and iOS versions are developed per programme.
What battery does it use?
CR1632, replaceable without re-pairing — an important detail for aftermarket users.
How many units do you ship?
More than 10,000 motorcycle units a month (over 20,000 sensors) on scheduled repeat programmes, with a monthly capacity of 30,000 sensors.
Can you produce it under our brand?
Yes. Private label covering housing marking, packaging, manual and label language is standard. A compact handlebar display can also be developed to your specification.
Ask for samples and a price break
Tell us your target quantity and host device; we will send the pairing protocol and a quotation.
