Mining truck TPMS — off-the-road tyre pressure monitoring
Mining truck TPMS for haul trucks and articulated haulers: external 433.92 MHz sensors mounted on the rim, IP68 protection and a receiver that reports over CAN to the machine or to the fleet platform. Dust, heavy loads and remote sites are the design brief, not an edge case.
Configuration
| Sensor | external screw-on with OTR extension valve, or internal; IP68, −40 ~ +125 °C |
| Pressure range | 0–4.5 / 0–9 / 0–13 bar by application, ±7 kPa |
| Battery | internal ≥ 5–6 years sealed · external ≥ 2 years replaceable (CR1632) |
| Configuration | 1 receiver + repeaters as required + sensors per wheel count |
| Data path | CAN to the machine controller, or 4G cloud for the whole site |
Delivered on
Rigid mining haul trucks · articulated dump trucks · wide-body trucks · LHD loaders
| Customer / programme | Application | Scale |
|---|---|---|
| Mining fleets | rigid and articulated dump trucks fitted on site | batch fitment |

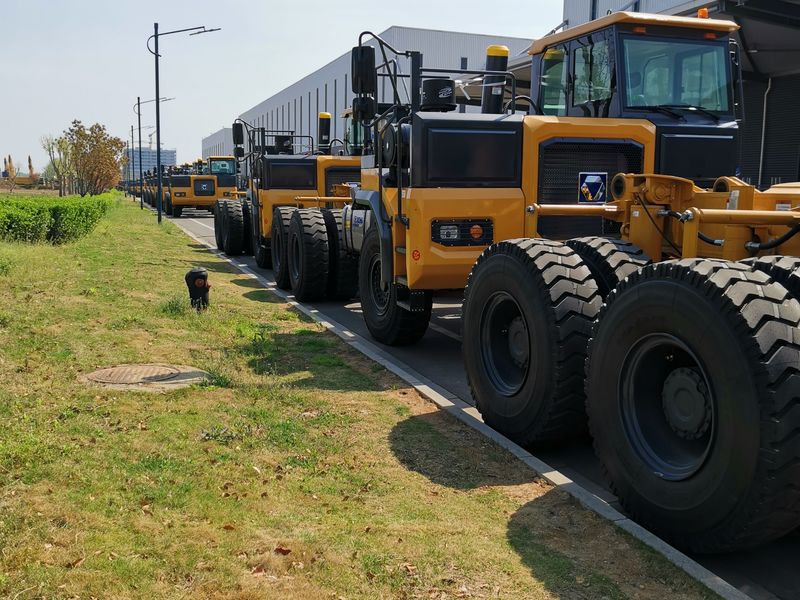

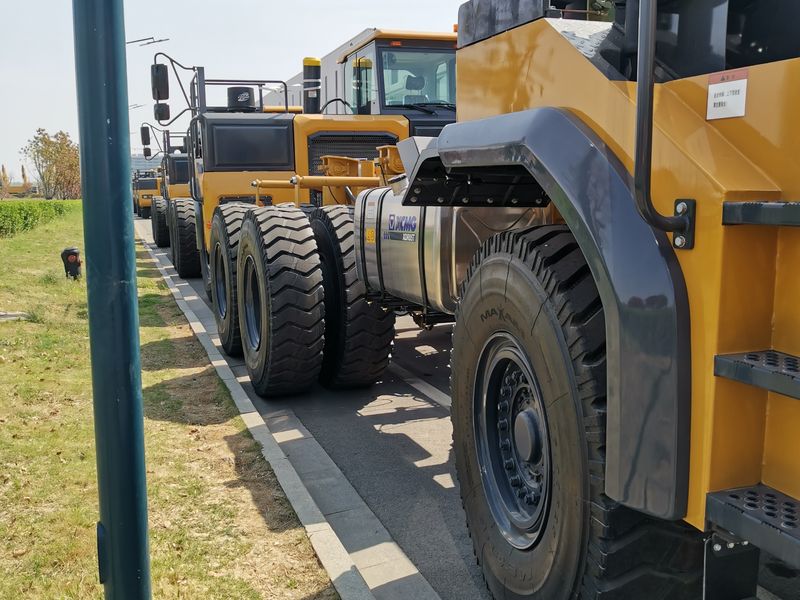

Field photos

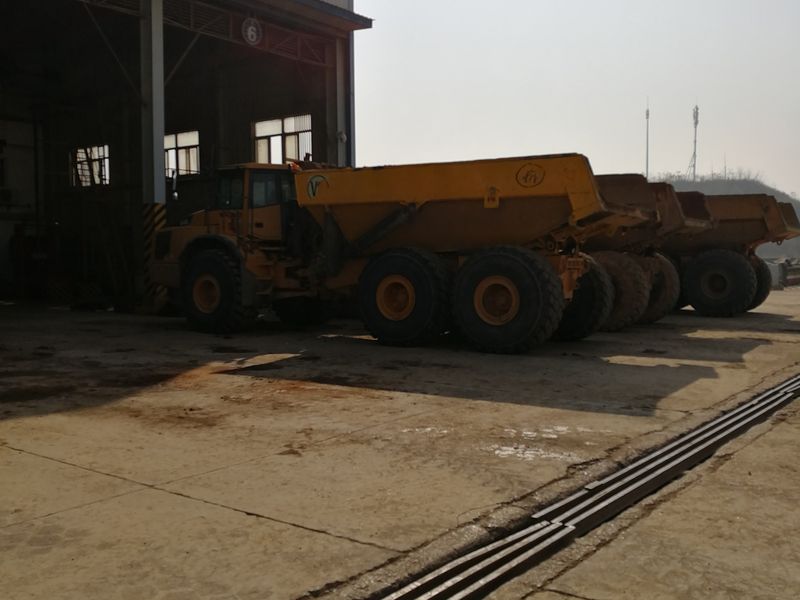

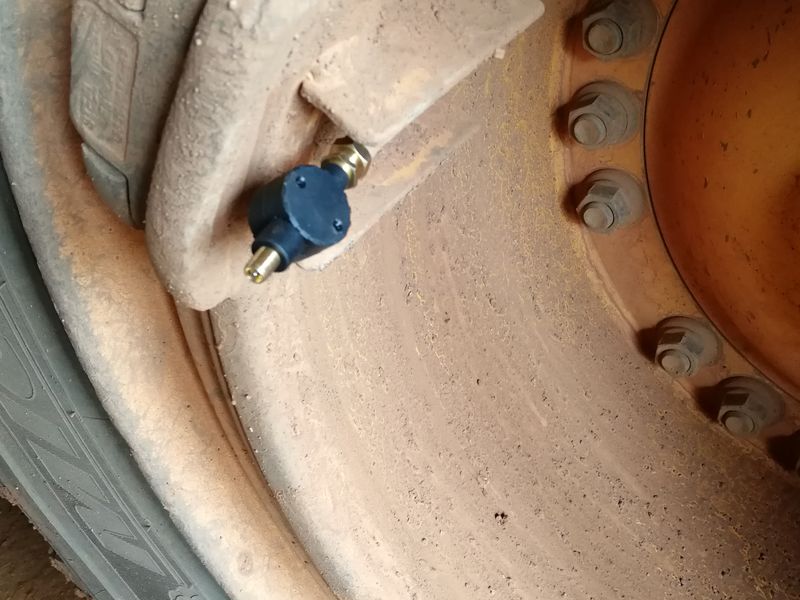

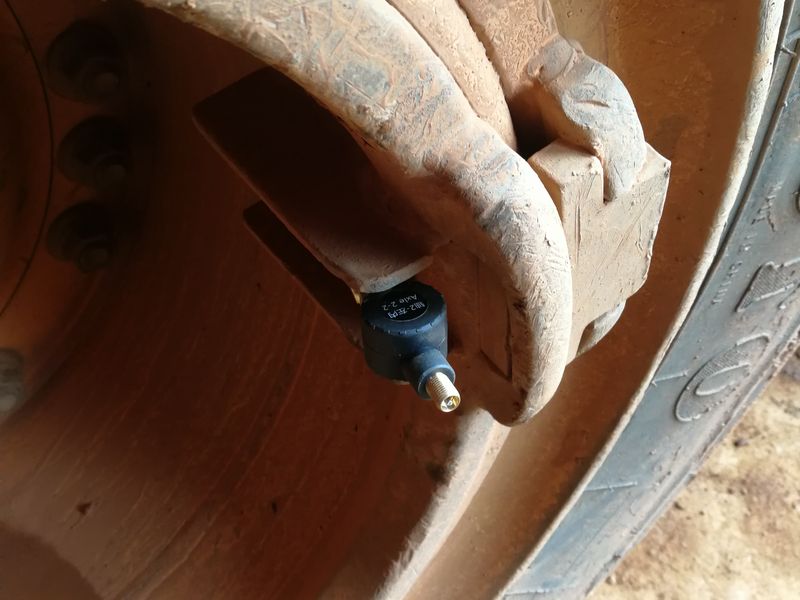

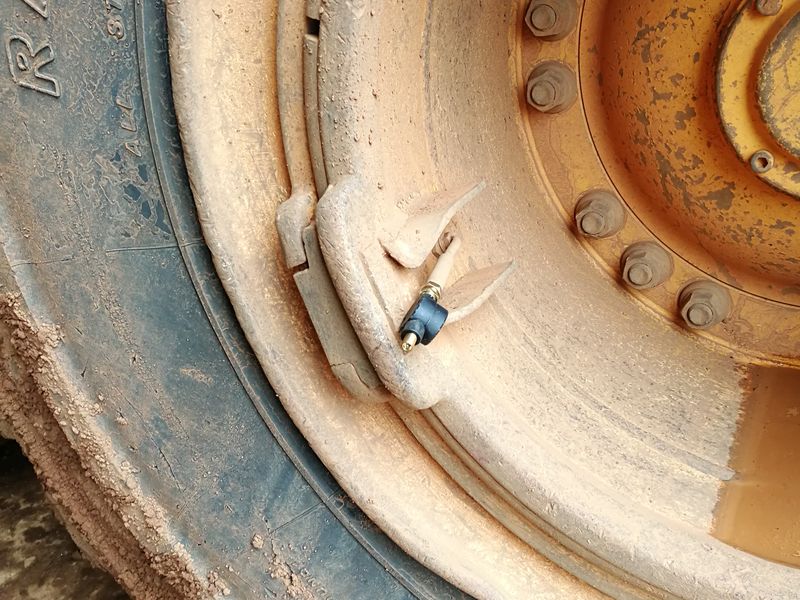

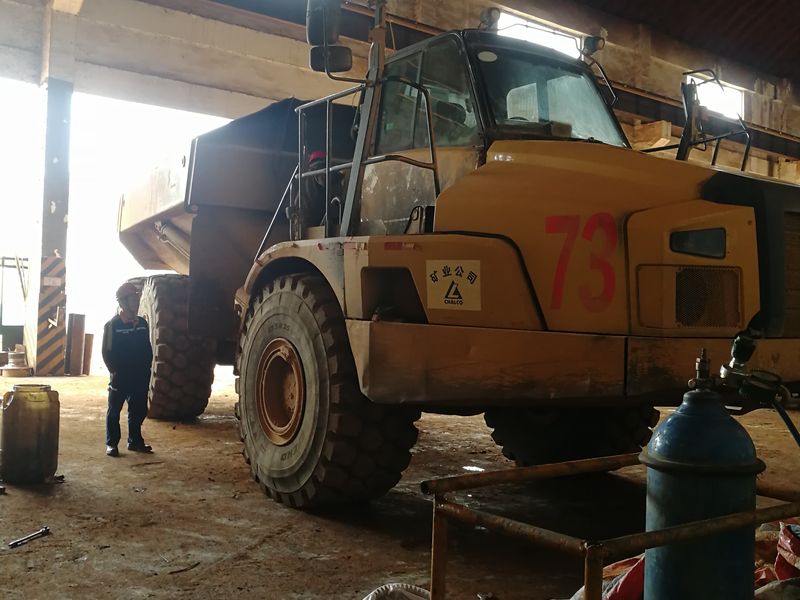

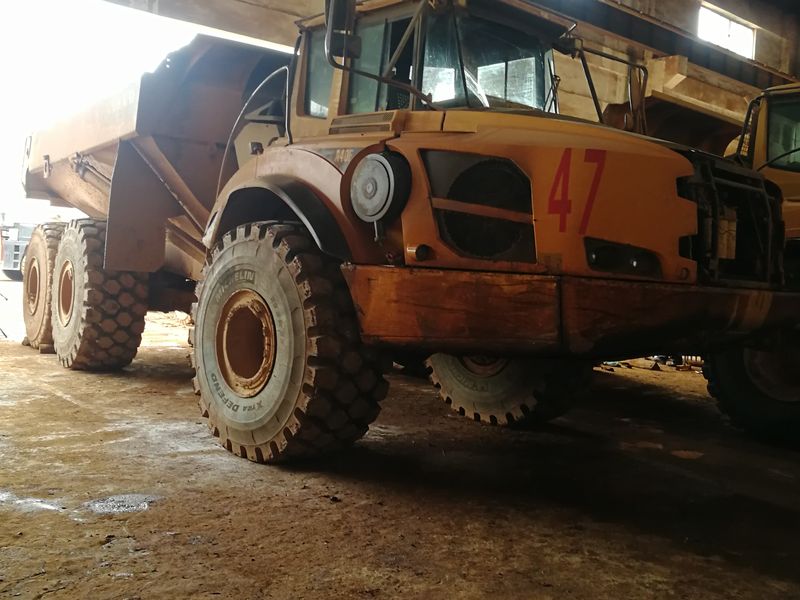

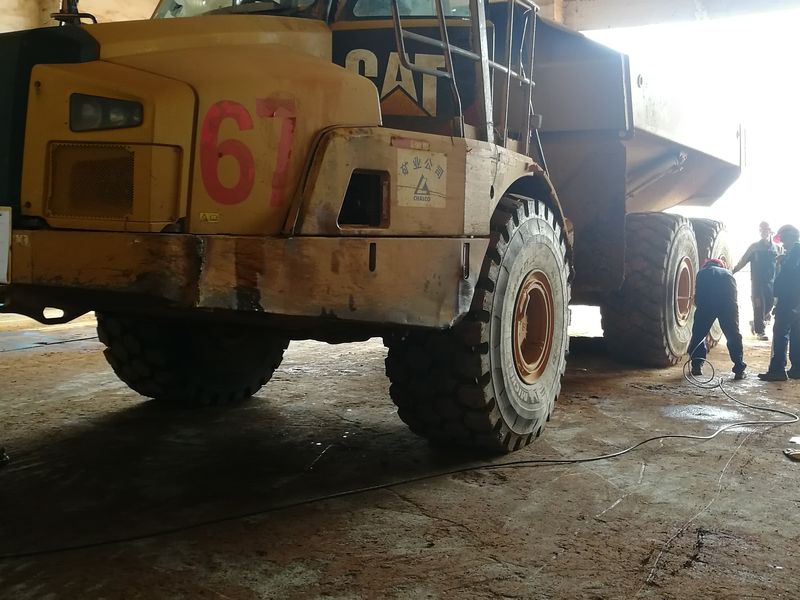

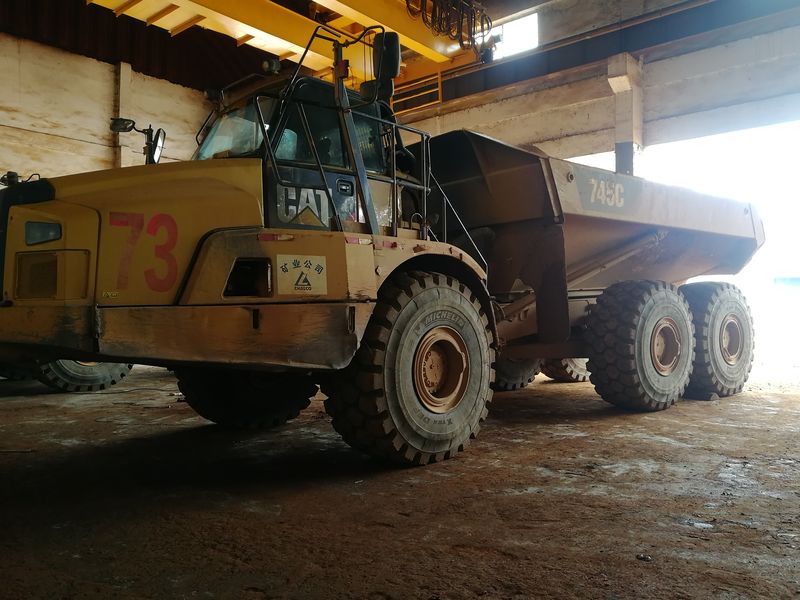

Photos from installations and operations on this machine class.
Your machine is probably on this list
Send the model and wheel count. If we have instrumented something similar, we will tell you exactly how it was done.
